AziEzi |
|
|
| |
|
|
| |

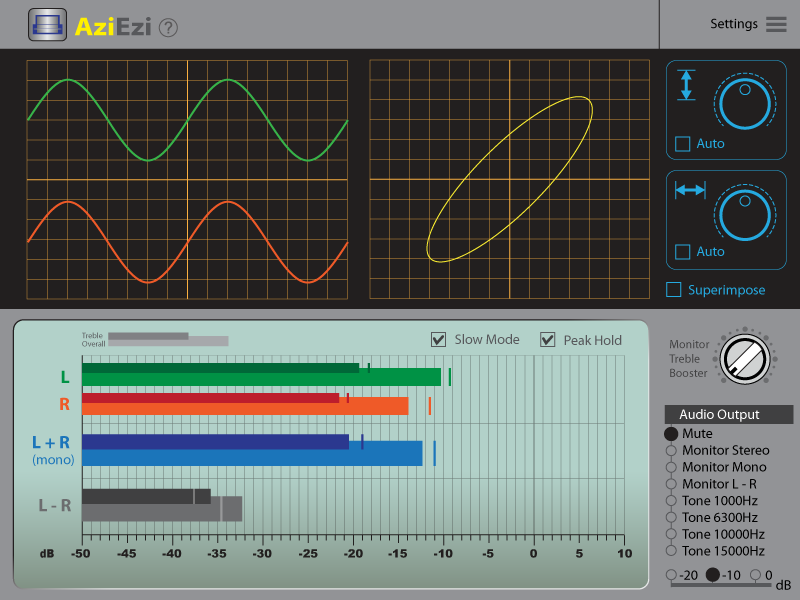

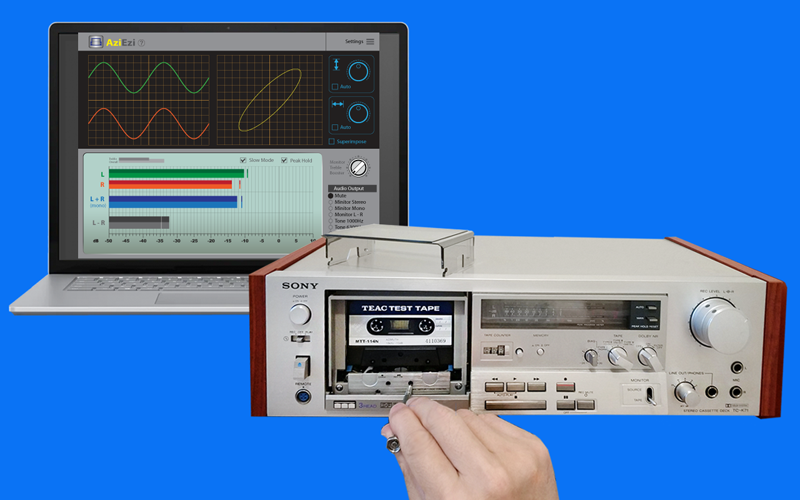

AziEzi is a compact utility for adjusting azimuth of audiotape player's magnetic head. It integrates oscilloscope, Lissajous, level meters, treble booster, and signal generator altogether, enabling users to watch all the measurements simultaneously on a single display. Additionally, users can listen to the audio in stereo, mono, or L-R (left minus right) in real time.
| |
| |
|
|
| |
|
|
| |
|
|
 |
| |
|
|
| |
System Requirements:
| OS |
macOS 10.11 (El Capitan) or later
Windows 10 (build 17763) or later (except Enterprise) |
| CPU |
>2.4GHz with at least two cores
|
| Sound Card |
Must have standard stereo input and stereo output, sample rate
44.1kHz ~ 96kHz (higher sample rate may also work but not
guaranteed)
|
|
|
| |
|
|
| |
Specifications:

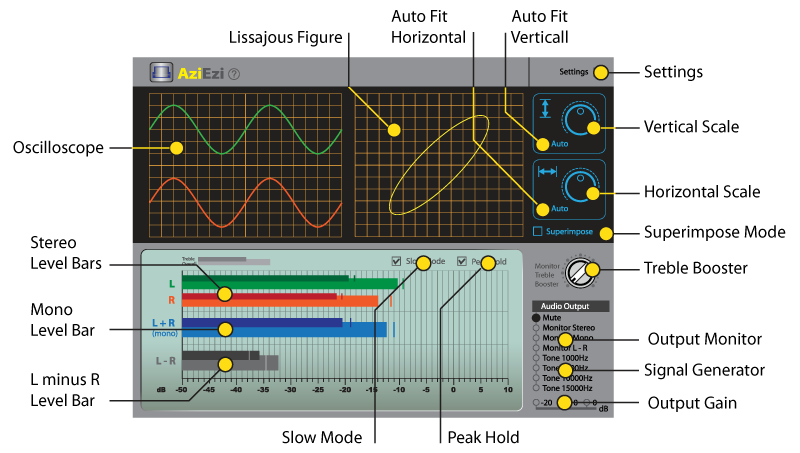

| Oscilloscope |
2-channel with auto/manual range adjustment and superimpose options |
| Lissajous display |
With slow motion ellipse
|
| Level meters |
stereo/mono/L-R bars in RMS scale, with peak hold and slow motion options
|
| Signal generator |
1kHz/6.3kHz/10kHz/15kHz/20kHz @0dB/-10dB/-20dB |
| Output monitor |
stereo/mono/L-R/mute |
| Treble booster |
up to +30dB |
Please note that the final accuracy will also depend on what test tape is used, either with pure test tone or pre-recorded music. |
|
| |
|
|
 |
| |
|
|
 |
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
